Product Overview

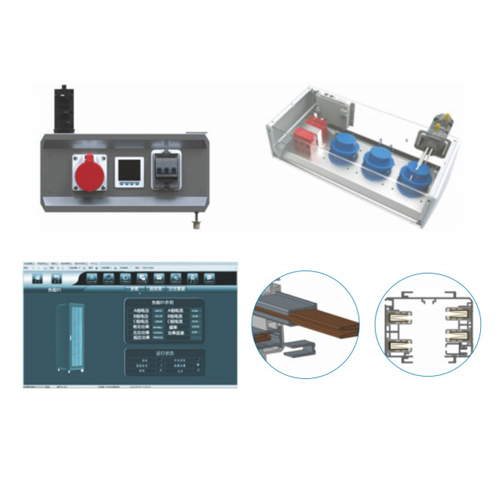

Online intelligent small busbar is used for power supply at the end of data center rooms, with a capacity of 100-630A. The protection level of 0nline intelligent small busbar is IP55, which is suitable for the requirements of most application scenarioses. The Online Smart Bus supplies power to the PDU through a plug-in box that can be electrically plugged in. The power supply capacity of the plug-in box ranges from 16A to 100A.
The busbar adopts a three-phase five wire system, with L1, L2, L3, N, PE, and PE wires using independent copper bars. The phase wires, N wires, and PE wires of each busbar slot are reliably connected, and the connection points will not loosen under any circumstances, ensuring normal power supply. The busbar adopts natural air cooling method, and the service life of the busbar duct is not less than 30 years.
The Online intelligent small busbar adopts a bus architecture, and the busbar architecture is used from the UPS output distribution cabinet to the PDU assembly. The large and small busbars are connected by overlapping copper bars, starting boxes, and plug-in boxes to complete the entire end distribution. High reliability, using busbar architecture to reduce failure rate: high flexibility, Oline smart small busbar can be fully overlapped, and the plug-in precision can slide at any point. Convenient for later cabinet adjustments.
The monitoring adopts high-precision data acquisition equipment, which can accurately measure various parameters of the distribution system. The terminal is equipped with an LCD monitoring screen, including the incoming voltage, current, apparent power, active power, active energy, frequency, power factor, harmonics, and bus temperature of the starting box; It can achieve overvoltage, undervoltage, overcurrent, frequency limit exceeding in the starting box and plug-in box, as well as disconnection or fault alarm of the incoming main switch, lightning arrester, and branch switch.
